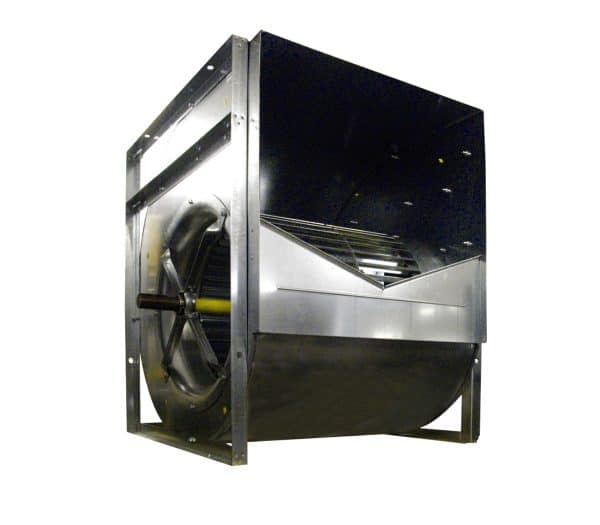

Belt Driven Centrifugal Fans With Forward Curved Impeller Blades ADH Series (Double Inlet)

Description

  • Scroll casing with forward curved blades – doublet inlet.
  • Without integrated motor.
  • Sizes 0200 up to 1000.
  • Housing of galvanized sheet steel.
  • V-belt and pulley transmission drive.
  • Impeller with forward curved blades of galvanised sheet steel.
  • The standard series are designed for permanent ventilation at up to +80°C resp. +100°C.
  • Volume up to 300.000 m³/h.
  • Pressure up to 2.200 Pa.
  • Performance curves available for all types.
  • The specifications conform to accuracy class 2 according to DIN 24166.

PDF / Specifications
