Description
- Plate axial fan with circular reinforced frame.
- Motor-impeller modular assembly for complete versatility.
- Corrosion-resistant powder coat polyester resin.
- Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation. Manufactured with standard voltages: 230V 50Hz in single phase motors.

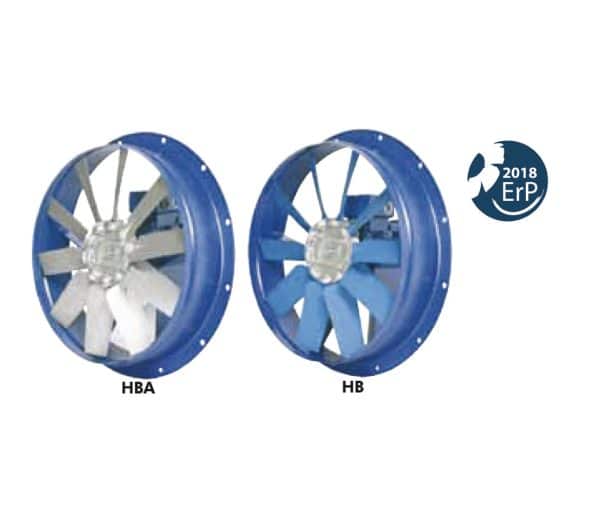

- HB: Polyamide impeller with variable pitch angle reinforced with fiberglass
- HBA: Cast aluminum impeller with variable pitch angle.
Under request:
- Supply impeller (air direction from impeller to motor)
- 100% reversible impeller.
- 60Hz fans and special voltages.
- Hot-dipped galvanized or stainless steel housing.
Applications:
Designed for wall or duct installation, they are suitable for:
Air renewal in buildings and industries.
Maximum working temperature: 1ph 50°C, 3ph 60°C.
